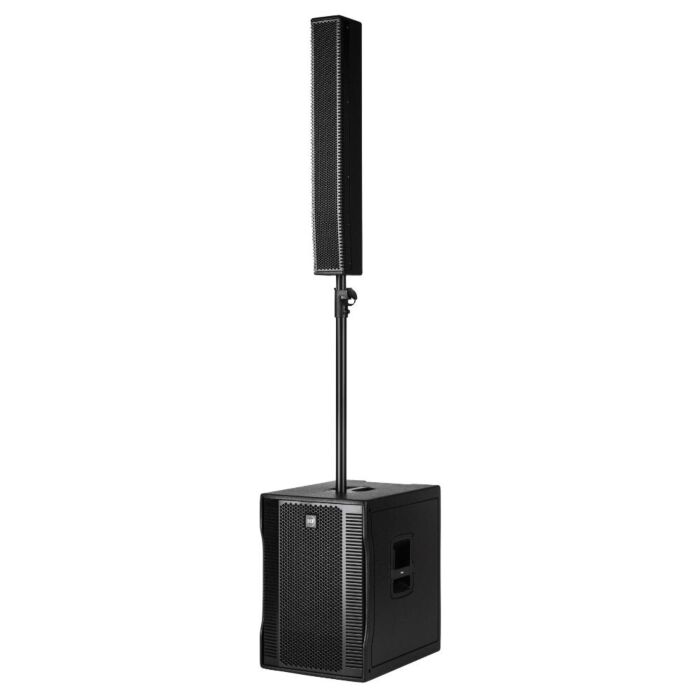

RCF EVOX 12 Powered Array Column Speaker PA System
SKU
EVOX-12
$2,499.00
In stock
EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier.
RCF EVOX 12
The top section has eight high performance neodymium 4 “full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15” subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.
Features
- 1400 Watt
- 130 dB max SPL
- 40 Hz 20 kHz frequency response
- 15" Woofer
- 8 x 4" neodymium full-range woofer
- 90° x 30° slightly tilted pattern control
- Innovative DSP processing
- Pole mountable, easy set-up and transportation
Specs
| ACOUSTICAL SPECIFICATIONS | Frequency Response | 40 Hz - 20000 Hz |
|
Max SPL @ 1m
|
130 dB | |
|
Horizontal coverage angle
|
90° | |
| Vertical coverage angle | 30° | |
| TRANSDUCERS | Fullrange | 8 x 4.0'', 1.0'' v.c |
| Woofer | 15'', 3.0'' v.c | |
| INPUT/OUTPUT SECTION | Input signal | bal/unbal |
| Input connectors | XLR, Jack | |
| Output connectors | XLR | |
| Input sensitivity | -2 dBu/+4 dBu | |
| PROCESSOR SECTION | Crossover Frequencies | 180 Hz |
| Protections | Thermal, RMS | |
| Limiter | Soft Limiter | |
| Controls | Volume, EQ | |
| POWER SECTION | Total Power | 1400 W Peak, 700 W RMS |
| High frequencies |
400 W Peak, 200 W RMS
|
|
| Low frequencies | 1000 W Peak, 500 W RMS | |
| Cooling | Convection | |
| Connections | VDE | |
| STANDARD COMPLIANCE | Safety agency | CE compliant |
| PHYSICAL SPECIFICATIONS | Cabinet/Case Material | Baltic birch plywood |
| Color |
Black, White - RAL 9003
|
|
| SIZE / WEIGHT | Height |
2200 mm / 86.61 inches
|
| Width |
410 mm / 16.14 inches
|
|
| Depth |
560 mm / 22.05 inches
|
|
| Weight |
36.4 kg / 80.25 lbs
|
|
| SHIPPING INFORMATION | Package Height |
636 mm / 25.04 inches
|
| Package Width |
459 mm / 18.07 inches
|
|
| Package Depth |
613 mm / 24.13 inches
|
|
| Package Weight |
43.89 kg / 96.76 lbs
|
| Brand | RCF |
|---|---|
| Cab Material | Birch Plywood |
| Speaker Size | 15" |
| Powered | Yes |
| Total Power | 1000W to 2000W |
| Max SPL at Peak | 130dB to 140dB |
