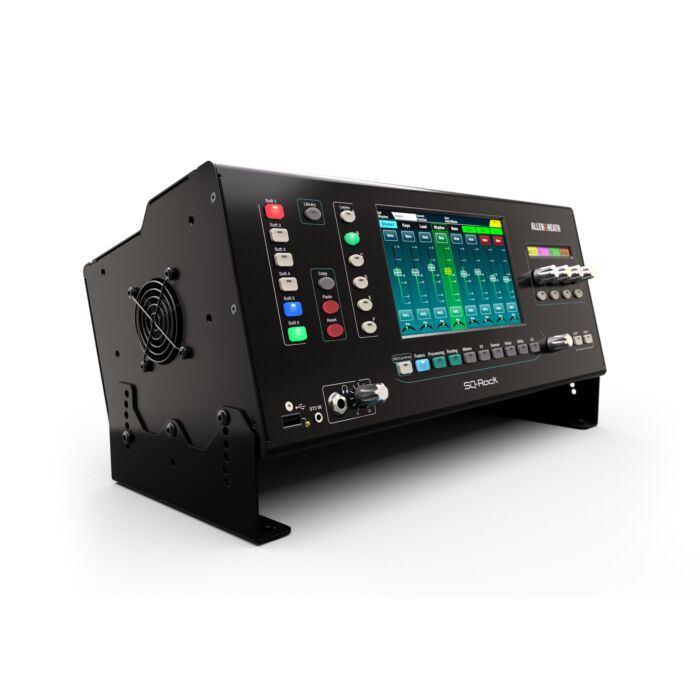

Allen & Heath SQ-Rack 16in / 12out 48-channel Rackmount Digital Mixer With 7" HD Capacitive Touchscreen
SKU
SQ-Rack
$2,999.00
In stock
SQ-Rack is the ultimate tool for audio professionals, delivering Allen & Heath’s renowned 96kHz SQ core in a compact, rack-mountable design. Perfectly crafted to meet the demands of live sound and installation environments, SQ-Rack combines power, flexibility, and intuitive control in one versatile solution.
Features
19” Rack Mountable (4U)
Audio and Processing:
- 96kHz XCVI FPGA processing
- 48 input channels
- 12 stereo mixes + LR
- 3 stereo matrix (split to 6 mono)
- 8 stereo FX engines + dedicated stereo returns
- DEEP processing ready
Onboard I/O:
- 16+1 built-in mic preamps
- 3 stereo line inputs
- 12 XLR line outputs
- 2 TRS line outputs
- AES output
Control:
- 7” capacitive touchscreen
- 8 assignable SoftKeys
- 4 assignable soft rotaries
- SQ-MixPad app
- SQ-Control app
- SQ4You app
Expandability and Integration:
- SLink port for remote audio / expansion
- 64×64 I/O port for audio networking cards (Dante, Waves, MADI, SLink)
Recording and Streaming:
- SQ-Drive direct recording to USB
- 32×32 96kHz USB interface
| Brand | Allen&Heath |
|---|---|
| Series | Allen & Heath SQ |
| Channels | 48 |
| XLR Mic Inputs | 16 |
| Effects | Yes |
| Connectivity | Ethernet, USB |
| DAW Control | Yes |
| Rackmountable | Yes |
