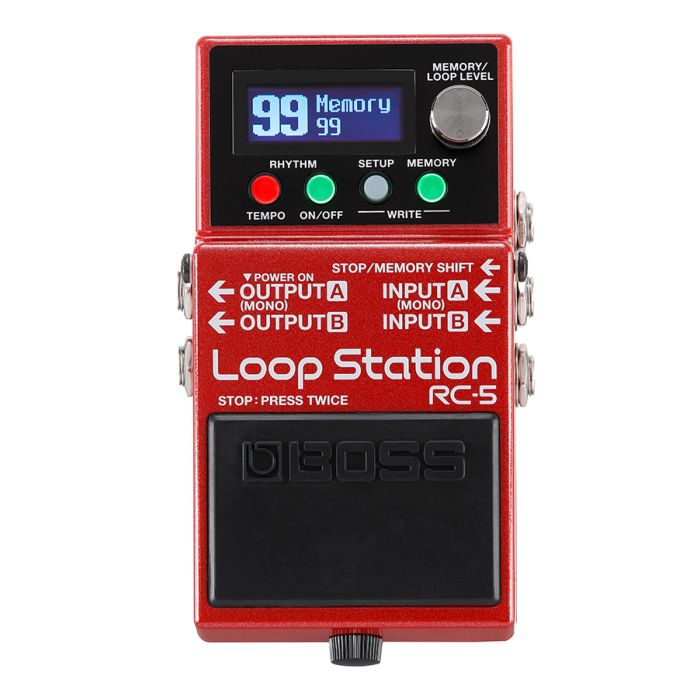

Boss RC-5 Loop Station Effects Pedal
SKU
RC-5
$199.99
In stock
Step up to the RC-5 and prime your pedalboard with maximum looping range. Capture sound with premium 32-bit quality, navigate parameters and monitor loop status with the backlit LCD, and tap into expanded operation via the control jack and TRS MIDI I/O. And with over 50 rhythms, 13 hours of stereo recording, 99 phrase memories, and more, the compact RC-5 puts a deep well of musical power at your feet.
Features
- Advanced BOSS looping features in a compact footprint
- Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
- Stereo looper engine with 13 hours of recording time
- LCD with multi-color backlight for viewing loop status and editing parameters
- Reverse function for infusing loops with interesting textures
- Seven different drum kits and 57 preset rhythms with A/B variations
- Support for expanded control via external footswitches, an expression pedal, or MIDI
- Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
- Onboard storage for 99 phrase memories
- Back up and load WAV loops via USB
For optimal performance, stay up to date with the current RC-5 system software and BOSS Tone Studio
Specs
- Sampling Frequency: 44.1 kHz
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Recording/Playback: Number of Track: 1, Data Format: WAV (44.1 kHz, 32-bit float, stereo), Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
- Rhythm Type: 57 Patterns x 2 Variations
- Rhythm Kit: 7 types
- Effect: Reverb (only for rhythm part)
- Memory: 99
- Nominal Input Level: INPUT A/MONO, B: -20 dBu
- Input Impedance: INPUT A/MONO, B: 1 M ohm
- Nominal Output Level: OUTPUT A/MONO, B:-20 dBu
- Output Impedance: OUTPUT A/MONO, B: 1 k ohm
- Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls: MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch
- Display: Graphic LCD (96 x 32 dots, RGB backlit LCD)
- Connectors: INPUT A/MONO, B jacks: 1/4-inch phone type, OUTPUT A/MONO, B jacks: 1/4-inch phone type, STOP/MEMORY jack: 1/4-inch TRS phone type, USB port: USB B type, MIDI (IN, OUT) jacks: stereo miniature type, DC IN jack
- Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22), AC adaptor (PSA series: sold separately)
- Current Draw: 170 mA
- Expected battery life under continuous use: Alkaline: Approx. 2 hours
*These figures will vary depending on the actual conditions of use. - Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6LR61 or 6LF22)
| Brand | Boss |
|---|---|
| Effect Type | Looper |
| Analog / Digital | Digital |
| Inputs | 2 x 1/4", 1 x 1/4" stop/memory |
| Outputs | 2 x 1/4" |
