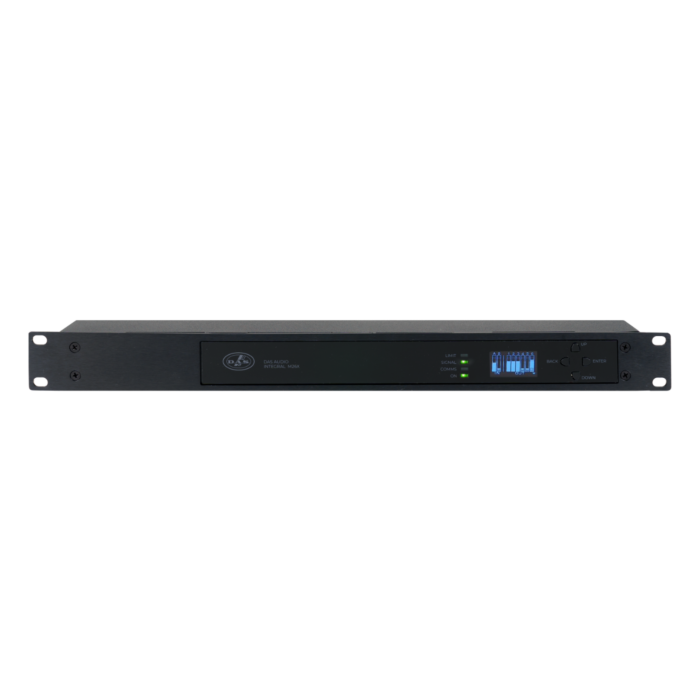

D.A.S. Audio INTEGRAL-M26X Signal Processor
The INTEGRAL-M26X, a 1U rack-mount digital signal processor, features two analogue input channels and six analogue output channels equipped with balanced XLR connectors. Its compact, cost-effective design makes it a versatile choice for live and installed PA systems.
D.A.S. Audio INTEGRAL-M26X
Remote control and monitoring are possible via ALMA™ software using IP technology, or alternatively, it can be managed using external controllers through OSC messages. Direct unit control is facilitated through a 1.54″ OLED display with control buttons for basic parameters. These include input and output levels, preset recalls, mute, source selection, and link manager functions.
The device houses a complete signal processing matrix, offering gain, delay, routing, equalization, and limiters adjustment options. Its internal memory can store over 100 global presets and 200+ output channel presets, including specific presets for all DAS Audio speakers.
External control is further simplified through a General-Purpose Input / Output (GPIO) connector, providing an external 3V3 volt, GND signal, and 8 configurable pins via ALMA™software.
Specs
| Electronics and Audio | |
| Frequency Response | 20 Hz-30 kHz (+0 -0.5 dB) |
| Max Input Level | +22 dBu |
| Max. Output Level | +22 dBu |
| Controls | Power On/Off, Navigation Buttons |
| Sampling Rate | 48 kHz |
| Display | OLED 1.54″ |
| Cooling | Side-Right-to-Left |
| LED Indicators | On, Comms, Signal, Limit |
| Power | |
| AC Input Connector | IEC 15A |
| Power Supply | Universal Mains Switch Mode |
| Operating Range | 90 – 250 VAC |
| DSP | |
| Analog Input Channels | 2 |
| Analog Output Channels | 6 |
| AD Converters | 24 Bit @ 48 kHz 118 dBA Dynamic Range |
| DA Converters | 24 Bit @ 48 kHz 118 dBA Dynamic Range |
| Internal Precision | 32 Bit, 64 Bits Double Precission |
| Latency | 1 ms |
| Delay | 50ms per input / 135ms per output |
| Equalizer | Bell, Lo/Hi-Shelving, Hos |
| Crossover | Linkwitz-Riley, Butterworth, Bessel |
| High and Low Pass Filters | Up to 48 dB/oct |
| Limiters | RMS |
| Dimensions-Weight | |
| Dimensions ( H x W x D ) | 44 x 483 x 210 mm 1,7 x 19,0 x 8,3 in |
| Net Weight | 2,5 kg ( 5,5 lb ) |
| Brand | D.A.S. Audio |
|---|---|
| Accessory Type | Signal Processor |
