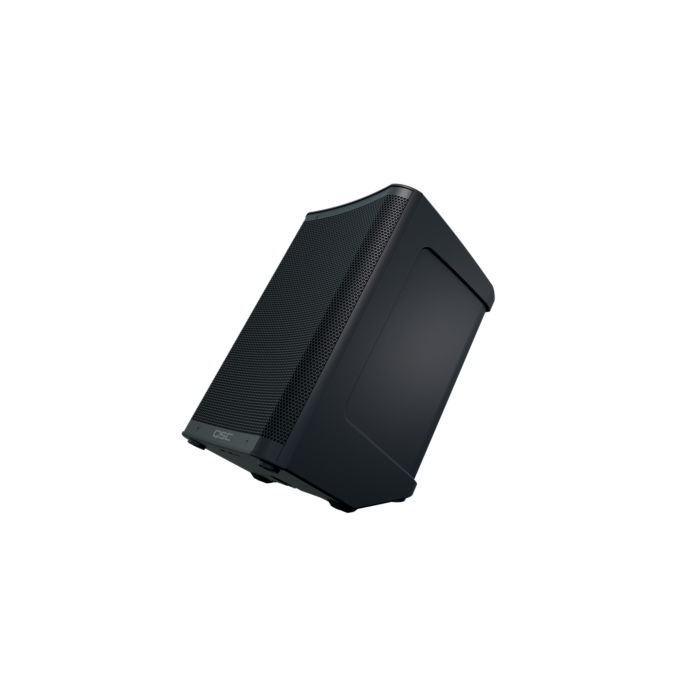

QSC CB10 10-Inch Compact Battery-Powered Portable Loudspeaker System

SKU

Shop by Brands:

$799.99

In stock

The CB10 is a compact, battery-powered loudspeaker system offering unrivaled audio performance and versatility. It features a 10-inch LF driver, 1-inch compression driver and 3-channel mixer for microphones, instruments and Bluetooth^® streaming. Ideal for DJs, event professionals and musicians, it offers easy plug-and-play operation and customization via the QSC Loudspeaker Control app.

Frequently Bought Together

This Item: QSC CB10 10-Inch Compact Battery-Powered Portable Loudspeaker System
$799.99
Shure SM58 Dynamic Vocal Microphone

$119.00
As low as $109.00
Show details
Shure PGA48 Vocal Microphone with XLR to XLR Cable
$54.00

Total price

Details

Specs

More Information

Reviews

Questions & Answers

Features

PROFESSIONAL PA PERFORMANCE

Powerful, Compact 2-way System

440 watts of peak power (Class D)
10-inch woofer
1-inch HF compression driver
127 dB @ 1 m (peak SPL)

Integrated 3-Channel Mixer
Wireless Remote Control

Two combo XLR inputs with independent Factory Presets
QSC Loudspeaker Control App (iOS & Android) for convenient system remote control

Room Delay

200 ms (max) of room delay

VERSATILE

Simple to Use

Large carry handle on the enclosure top
Lightweight and portable
30 degrees tilt back (floor deployment)
Integrated pole cup (stand deployment)

Bluetooth^® 5.1 Audio

For control and audio with True Wireless Stereo (TWS) Bluetooth

Battery and AC Power

Up to 12 hours of battery power (rechargeable in approx. 4 hrs)
User-installable/removable battery pack
AC power for unlimited steady operation

Specs

Configuration	Two-way Rechargeable Loudspeaker System
LF Transducer:	254 mm (10-inch), cone
HF Transducer:	25.4 mm (1-inch), compression driver
Frequency Response (-6 dB)	51 Hz - 18 kHz
Frequency Range (-10 dB)	47 Hz - 20 kHz
Nominal Coverage Angle:	90° Axisymetric
Maximum Rated SPL¹:	127 dB @ 1 m
Amplification (peak):	Class D, 440 W
Cooling:	Convection cooling
Backpanel Controls:	3 x Rotary level potentiometers (Gain) 2 x MIC Boost Push-Switch 2 x 6-way Contour Selection Rotary-Switch (featuring CUSTOM APP controls) 1 x Bluetooth Switch 1 x Output Select Switch 1 x AC Power Switch
Loudspeaker Control App Functions:	Input Channels: Gain Control, Presets (Channels A and B), EQ Reverb (Channels A and B ) Ducker (Channel A) Contour Selection Custom Output Routing Footswitch Functionality: Channel Mute, FX Mute, or Channel Boost Bluetooth Audio Configuration Loudspeaker Firmware Updates
Backpanel Indicators:	3 × Input Signal/Clip LEDs 2 x MIC selected LEDs 3 x Battery Charge LEDs 1 x Limiter Active LED 1 x Bluetooth LED 1 x Output Select LED 1 x Power/Standby LED
Connectors:	2 × locking XLR/F ¼ inch combo (Line Input and Mic/Line Input) 1 × 3.5 mm TRS (Stereo Input) 1 x 6.3 mm TS (Footswitch) 1 × XLR/M (Mix Output) 1 × locking IEC Power Connector
DC Power (Battery):	Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module (1x unit included with CB10) Battery life: up to 12 hours / Battery charging time: approx. 4 hours
AC Power Input:	Universal Power Supply: 100-240 VAC, 50/60 Hz
AC Power Consumption²:	100 VAC, 1A / 120 VAC, 0.9 / 240 VAC, 0.5A
Enclosure Material:	Polypropylene
Color:	Black (RAL 9011)
Grille:	Powder-coated steel with internal lining (18 Gauge)
Loudspeaker Dimensions (H×W×D):	465 x 313 x 287 mm / 18.3 x 12.3 x 11.3 in
Carton Dimensions (H×W×D):	559 x 406 x 381 mm / 22 x 16 x 15 in
Net Weight:	12.2 kg / 26.9 lb
Shipping Weight:	14.5 kg / 32 lb
Battery Chemistry:	Lithium Nickel Manganese Cobalt Oxide
Regulatory:	CE, WEEE, TUV, China RoHS, RoHS II, FCC Class A
Optional Accessories:	CB10-CVR: Weatherized Cover for the CB10 Loudspeaker System CB10-BATTERY: Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module

More Information
Brand	QSC
Rechargeable	Yes
Speaker Size	10"
Powered	Yes
Total Power	250W to 500W
Max SPL at Peak	120dB to 130dB
