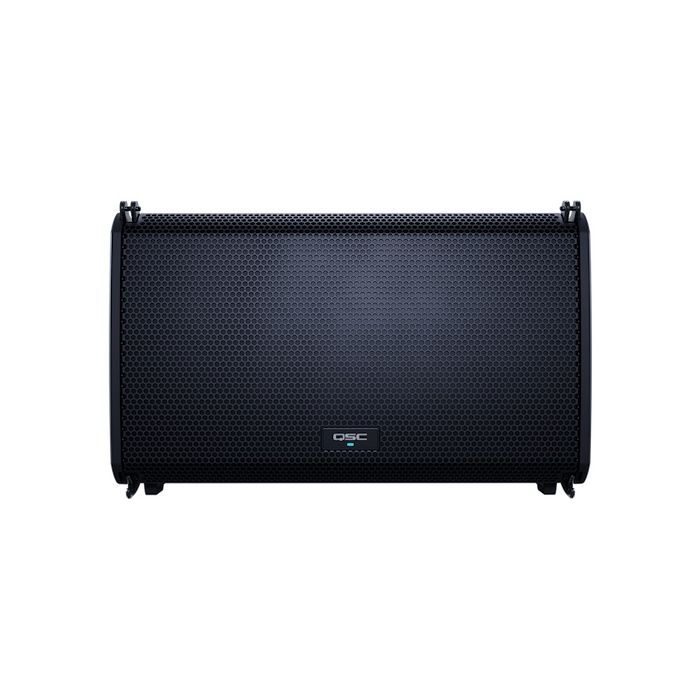

QSC LA112 12" 2400-Watt Powered Line Array Loudspeaker 12-inch 2-way
QSC's L Class represents the next-generation of advanced, intelligent, active loudspeakers for mobile and fixed entertainment applications. Each loudspeaker is backed by an industry-best global 6-Year Extended Warranty, with product registration.
The LA112 is a next-generation, intelligent, active line array loudspeaker featuring a brilliant combination of leading-edge innovation, refined engineering and unparalleled ease of use in easy-to-deploy packages.
Delivering extraordinary audio experiences and exceptional performance via system intelligence and premium components, both products were developed thoroughly and rigorously with sound quality, simplicity and expandability in mind. The remarkable result of a deep understanding of customer needs and application requirements, LA112 loudspeakers are easy to configure and deploy for applications ranging from simple, portable, plug-and-play setups, to demanding, networked, high-tech AV productions and fixed installations.
Solo entertainers, installers and production companies will value their intuitive splay angle adjustment and array optimization, as well as their flexible interoperability with networked audio systems (Dante® ).
Technical innovations abound, including the proprietary QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide, QSC Acoustic Linear Phase (ALP) design and the ergonomically designed, single operator QSC RapidDeploy™ rigging system coupled with onboard QSC AWARE™ (Automatic Wireless ArrayRecognition) system intelligence.
Specs
- LF Transducer: 305 mm (12-inch), cone
- HF Transducer: 2x 44 mm (1.75-inch), compression drivers with Polyimide diaphragm
- Frequency Response: (-6 dB) 58 Hz - 20 kHz
- Frequency Range: (-10 dB) 53 Hz - 20 kHz
- Nominal Coverage Angle: 90° H x 15° V
- Maximum Rated SPL: (peak) 136 dB @ 1 m
- Amplifier (peak): Class D, LF 1600W / HF 800W
- Display Screen: 61 mm (2.4-inch) Full color display area (240 x 320 pixels)
- Controls: Rotary push encoder, 2 x Push button (Menu, ID)
- Connectors: XLR Female (Analog In), XLR Male (Analog Thru), 2 x RJ45 EtherCON (Dante® and QSC SysNav™ In/Thru), 2 x PowerCON TRUE1 (AC Power Inlet/Outlet)
- Net Weight: 21.4 kg (47.2 lb)
Brand | QSC |
---|---|
Series | QSC L Class |
Cab Material | Impact Resistant ABS |
Speaker Size | 12" |
Powered | Yes |
Total Power | 2000W to 5000W |
Max SPL at Peak | 130dB to 140dB |
