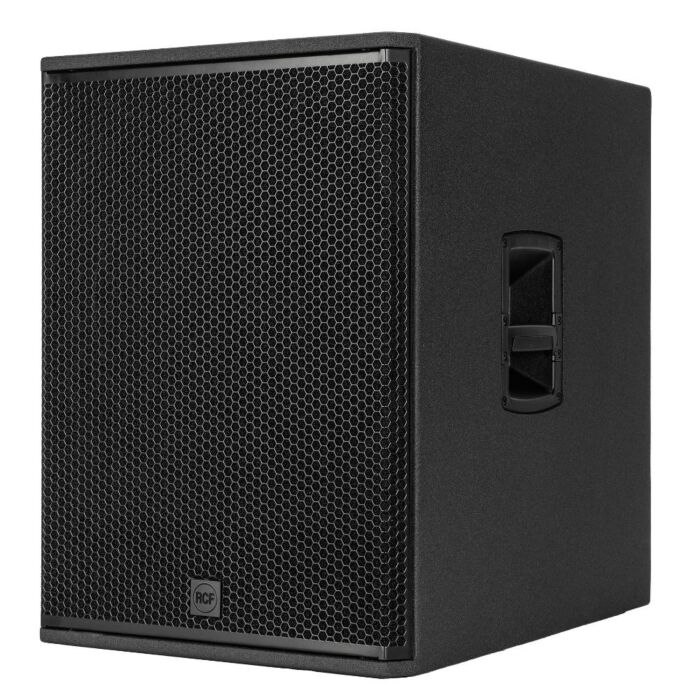

RCF SUB 708AS MK3 18" 1400-Watt Powered Subwoofer
The SUB 708-AS mk3 is a portable 18" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 133 dB with exceptional headroom.
-
This Item:
$1,399.00
-
RCF CVR 003 Protective Cover for Subwoofer
$199.00
RCF SUB 708-AS
Designed as the ideal complement for 8" or 10" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 708-AS MK3 is perfect for small to mid-sized venues and portable applications.
Features
- 1400 Watt Class-D Amplifier
- 18” Woofer, bass reflex housing
- Stereo Crossover
- Switchable Crossover Frequencies
- Polarity-reverse switch
- Electronic equalization, soft limiter and protection
- Stereo XLR input, Stereo XLR signal output
- Bass Motion Control excursion management
Specs
|
ACOUSTICAL SPECIFICATIONS |
Frequency Response |
35 Hz - 120 Hz |
|
Max SPL @ 1m |
133 dB |
|
|
TRANSDUCERS |
Woofer |
1 x 18'', 3.0'' v.c |
|
INPUT/OUTPUT SECTION |
Input signal |
bal/unbal |
|
Input connectors |
XLR |
|
|
Output connectors |
XLR |
|
|
Input sensitivity |
-2 dBu/+4 dBu |
|
|
PROCESSOR SECTION |
Hi-Pass Frequencies |
110 Hz |
|
Low-Pass Frequencies |
80 Hz |
|
|
Protections |
Thermal, RMS |
|
|
Limiter |
Soft Limiter |
|
|
Controls |
Volume, EQ, Phase, Xover |
|
|
POWER SECTION |
Total Power |
1400 W Peak, 700 W RMS |
|
Low frequencies |
1400 W Peak, 700 W RMS |
|
|
Cooling |
Convection |
|
|
Connections |
VDE |
|
|
STANDARD COMPLIANCE |
Safety agency |
CE compliant |
|
PHYSICAL SPECIFICATIONS |
Cabinet/Case Material |
Baltic birch plywood |
|
|
Handles |
One each side |
|
|
Pole mount/Cap |
M20 thread |
|
|
Grille |
Steel with clothing |
|
|
Color |
Black |
|
SIZE / WEIGHT |
Height |
693 mm / 27.28 inches |
|
|
Width |
505 mm / 19.88 inches |
|
|
Depth |
685 mm / 26.97 inches |
|
|
Weight |
40.6 kg / 89.51 lbs |
|
SHIPPING INFORMATION |
Package Height |
735 mm / 28.94 inches |
|
|
Package Width |
565 mm / 22.24 inches |
|
|
Package Depth |
745 mm / 29.33 inches |
|
|
Package Weight |
45.6 kg / 100.53 lbs |
| Brand | RCF |
|---|---|
| Cab Material | Birch Plywood |
| Speaker Size | 18" |
| Powered | Yes |
| Total Power | 1000W to 2000W |
| Max SPL at Peak | 130dB to 140dB |
