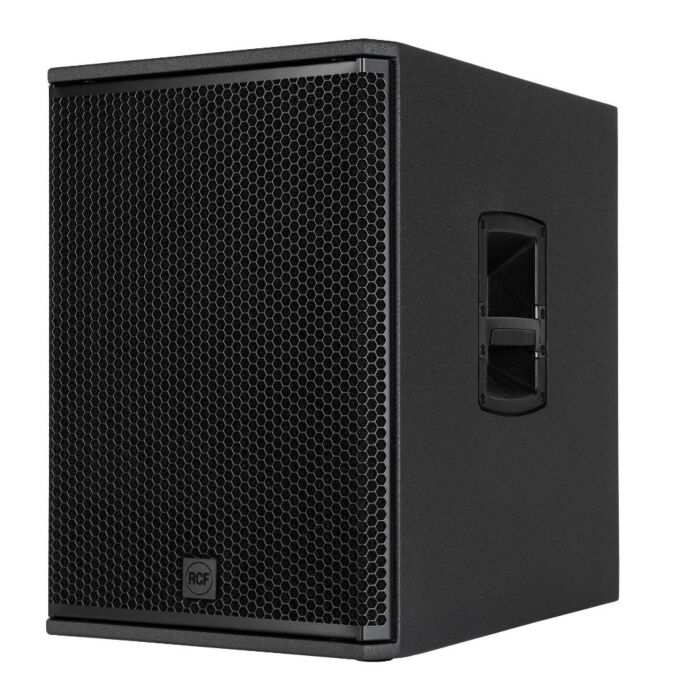

RCF SUB15-AS 15" 2200-Watt Powered Subwoofer
The SUB 15-AS is a portable 15" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer and a powerful 2200 Watts Class-D amplifier that delivers sound pressure levels up to 133 dB with exceptional headroom.
RCF SUB15-AS
Designed as the ideal complement for 8", 10" and 12" loudspeakers, it includes Bass Motion Control algorithm for extended bass response at any volume. The connection panel features mono/stereo Combo inputs, an XLR stereo link, and XLR crossover outputs. Rear panel controls include volume, polarity, and low-pass frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 15-AS is perfect for small to mid-sized venues and portable applications.
Features
- 2200Watt
- 133 dB max SPL
- 35Hz - 400Hz frequency response
- 15" Woofer, 3.0" voice coil
- Birch tour grade cabinet with polyurea coating
- Mono/Stereo XLR/TRS combo In + Link, Stereo XLR Xover Out
- Volume, polarity, and lowpass frequency selection
Specs
| ACOUSTICAL SPECIFICATIONS | Frequency Response | 35 Hz - 400 Hz |
| Max SPL @ 1m | 133 dB | |
| TRANSDUCERS | Woofer | 1 x 15'', 3.0'' v.c |
| INPUT/OUTPUT SECTION | Input signal |
bal/unbal
|
| Input connectors | Combo XLR/Jack | |
| Output connectors | XLR | |
| Input sensitivity | -2 dBu/+4 dBu | |
| PROCESSOR SECTION | Protections | Thermal |
| Limiter | Soft Limiter | |
| Controls | Volume, Polarity, Low pass filter frequency | |
| POWER SECTION | Total Power | 2200 W Peak |
| Cooling | Convection | |
| Connections | VDE | |
| STANDARD COMPLIANCE | Safety agency |
CE compliant
|
| PHYSICAL SPECIFICATIONS | Cabinet/Case Material | Baltic birch plywood |
| Handles | 1 each side | |
| Pole mount/Cap | M20 thread | |
| Grille |
Steel with clothing
|
|
| Color | Black | |
| SIZE / WEIGHT | Height | 590 mm / 23.23 inches |
| Width | 420 mm / 16.54 inches | |
| Depth | 590 mm / 23.23 inches | |
| Weight | 30 kg / 66.14 lbs | |
| SHIPPING INFORMATION | Package Height | 648 mm / 25.51 inches |
| Package Width | 638 mm / 25.12 inches | |
| Package Depth | 478 mm / 18.82 inches | |
| Package Weight | 34.9 kg / 76.94 lbs |
| Brand | RCF |
|---|---|
| Cab Material | Birch Plywood |
| Speaker Size | 15" |
| Powered | Yes |
| Total Power | 2000W to 5000W |
| Max SPL at Peak | 130dB to 140dB |
