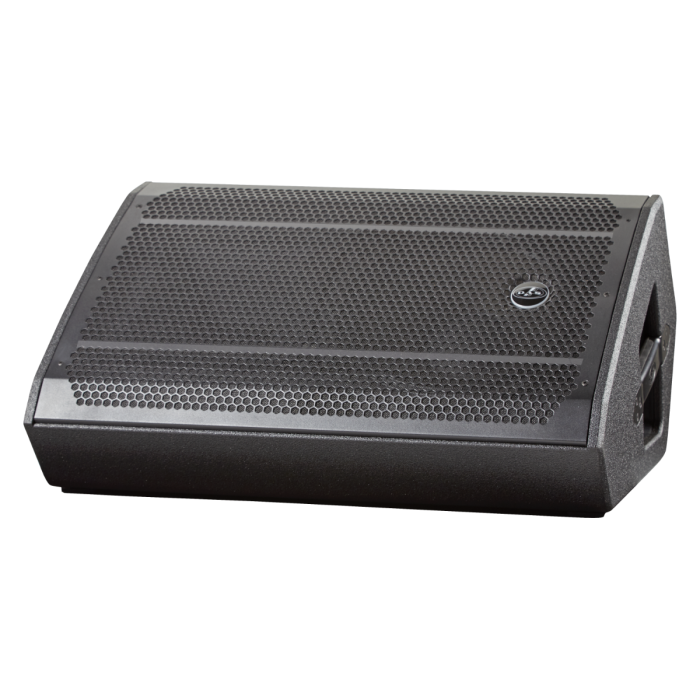

D.A.S. Audio ACTION-M512A 12" Powered 1000w 2 Way Stage Monitor
ACTION-M512A is an active stage monitor designed to deliver a highly versatile solution, from fixed installations to the popular portable monitor application. Its rotatable horn with 80º x 50º dispersion means the enclosure can also be used as a PA.
ACTION-M512A
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.
The system has a 12MI4 speaker for low frequencies and an M-34 compression driver for high frequencies which, together with the 1000w peak Class D amplifier, deliver outstanding performance. The DAScontrol™ interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.
Features
-
Powered
-
1000w Peak Total Power
-
12” Speaker
-
2 way full range stage monitor
-
80×50 rotatable horn
-
SPL Max: 130 dB
-
Dispersion: 80º x 50º
-
Weight: 19.5 kg (43 lb)
Specs
Performance |
|
| Frequency Range (-10 dB) | 60 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 80º |
| Vertical Coverage | 50º |
| Maximum Peak SPL at 1 m | 130 dB |
Electronics and Connectors |
|
| Nominal Amplifier Power (continuous) | 500 W |
| Nominal Amplifier Power (peak) | 1000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| Control | DAScontrol™ |
| AC Output Connector | powerCON NAC3MPB |
| Current Draw 230 V / 115 V | 1.1 A/2.2 A |
Enclosure |
|
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 335 x 650 x 450 mm 13,2 x 25,6 x 17,7 in |
| Net Weight | 19.5 kg (43 lb) |
Components |
|
| LF Driver | 12MI4 |
| HF Driver | M-34 |
| Horn/Waveguide | BC-85 |
| Brand | D.A.S. Audio |
|---|---|
| Series | DAS Action 500 Series |
| Cab Material | Birch Plywood |
| Speaker Size | 12" |
| Powered | Yes |
| Total Power | 1000W to 2000W |
| Max SPL at Peak | 130dB to 140dB |
