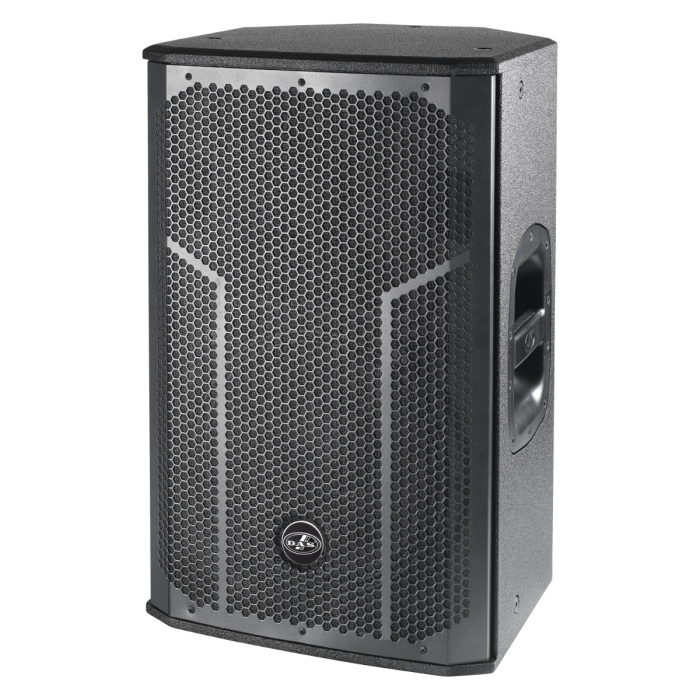

D.A.S. Audio ACTION-512A 12" Powered 1000w 2 Way Loudspeaker
ACTION-512A is an active system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. Its rotatable horn with 90º x 60º dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.
-
This Item:
$1,119.00
-
D.A.S. Audio ACTION-M512A 12" Powered 1000w 2 Way Stage Monitor
$1,069.00
-
D.A.S. Audio ACTION-S218A-115 2x18" Powered 3200w Bass-Reflex Subwoofer
$2,409.00
ACTION 500 Series
As part of D.A.S. Audio company culture, all their systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series they use the same birch plywood as their touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.
The system has a 12MI4 speaker for low frequencies and an M-34 compression driver for high frequencies which, together with the 1000 Wpeak Class D amplifier, deliver outstanding performance. The DAScontrol™ interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.
Features
-
Powered
-
1000w Peak Total Power
-
12” Speaker
-
2 way full-range
-
90×60 rotatable horn, black
-
SPL Max: 131 dB
-
Dispersion: 90º x 60º
-
Weight: 20 kg (44.1 lb)
Specs
Electronics and Connectors |
|
| Nominal Amplifier Power (continuous) | 500 W |
| Nominal Amplifier Power (peak) | 1000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DAScontrol™ |
| Current Draw 230 V / 115 V | 1.1 A/2.2 A |
Enclosure |
|
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 620 x 385 x 380 mm 24.4 x 15.2 x 15 in |
| Net Weight | 20 kg (44.1 lb) |
Components |
|
| LF Driver | 12MI4 |
| HF Driver | M-34 |
| Horn/Waveguide | BC-916 |
| Brand | D.A.S. Audio |
|---|---|
| Series | DAS Action 500 Series |
| Cab Material | Birch Plywood |
| Speaker Size | 12" |
| Powered | Yes |
| Total Power | 1000W to 2000W |
| Max SPL at Peak | 130dB to 140dB |
