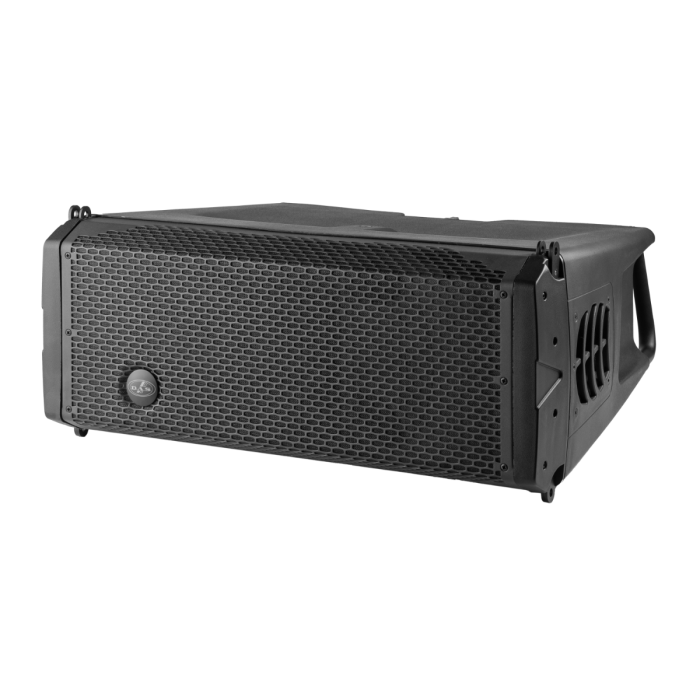

D.A.S. Audio EVENT-28A Powered 1300w 2 Way Compact Line Array - 8"
The EVENT-28A is an advanced symmetrical, compact, two-way powered line array system. Designed to provide outstanding performance and ease of use, this system features a stylish and portable polypropylene cabinet design that is both road-worthy and highly durable. With a comprehensive range of accessories, the EVENT-28A is perfect for small to mid-size rental and installation applications seeking superior sound quality.
-
This Item:
$2,599.99
-

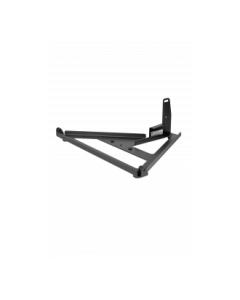

D.A.S. Audio Stacking Bracket for Event-28A Line Array Speakers
$249.99
EVENT 28A
This system integrates two 8″ neodymium transducers and a single M-60 compression driver into a robust yet lightweight polymer cabinet. The 8″ transducers, enhanced with neodymium magnets for reduced weight, ensure efficient sound projection and superior low-frequency response. The symmetric “V” shaped configuration of the cone transducers delivers consistent 100º horizontal coverage down to 200 Hz. The M-60 compression driver remains coupled to an advanced waveguide design, which controls the vertical dispersion and ensures precise coupling between units in vertical arrays.
Powered by a two-channel Class D amplifier, the EVENT-28A boasts 1300 Wpeak power. The amplifier’s rear panel is equipped with high-quality Neutrik® XLR and powerCON connectors. Using the DAScontrol™ interface, users can quickly select presets based on the number of units in the array. The onboard DSP utilizes a 24-bit high-end processor to manage crossover, EQ, delay, and limiter functions. Incorporating FIR filtering technology, the EVENT-28A maintains constant phase response, leading to transparent sound and exceptional clarity that enhances the overall listening experience.
Installation and deployment of EVENT-28A arrays are streamlined with the innovative Fast Set Splay (FSS™) rigging system, which allows for quick angle selection while stacked on dollies. The stainless-steel rigging hardware supports flown arrays of up to 16 units, adjustable in 1º increments from 0º to 10º.
The EVENT-28A pairs seamlessly with the flyable companion subwoofer, the EVENT-118A, ensuring robust low-frequency reinforcement. Weighing 20 kg, the EVENT-28A strikes an excellent balance between size, performance, and portability, making it an ideal solution for a wide array of sound reinforcement applications.
Features
-
Powered
-
1300w Peak Total Power
-
2 x 8″ Speakers
-
2 way full-range
-
Compact Line Array
-
SPL Max: 133 dB
-
Dispersion: 100º
-
Weight: 20.5 kg (44.1 lb)
Specs
Electronics and Connectors |
|
| Nominal Amplifier Power (continuous) | 650 W |
| Nominal Amplifier Power (peak) | 1300 W |
| Nominal Amplifier Power LF (continuous) | 500 W |
| Nominal Amplifier Power LF (peak) | 1000 W |
| Nominal Amplifier Power HF (continuous) | 150 W |
| Nominal Amplifier Power HF (peak) | 300 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 6.2 V (+18 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Recommended Signal Processing | INTEGRAL-M26X |
| AC Output Connector | powerCON NAC3MPB |
| Current Draw 230 V / 115 V | 1.2 A / 2.4 A |
Enclosure |
|
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | Captive Rigging System |
| Color | Black |
| Dimensions ( H x W x D ) | 280 x 635 x 525 mm 11 x 25 x 20.7 in |
| Net Weight | 20.5 kg (44.1 lb) |
Components |
|
| LF Driver | 8MIN |
| HF Driver | M-60 |
| Brand | D.A.S. Audio |
|---|---|
| Series | DAS Event Series |
| Cab Material | Polypropylene |
| Speaker Size | 8" |
| Powered | Yes |
| Total Power | 1000W to 2000W |
| Max SPL at Peak | 130dB to 140dB |
