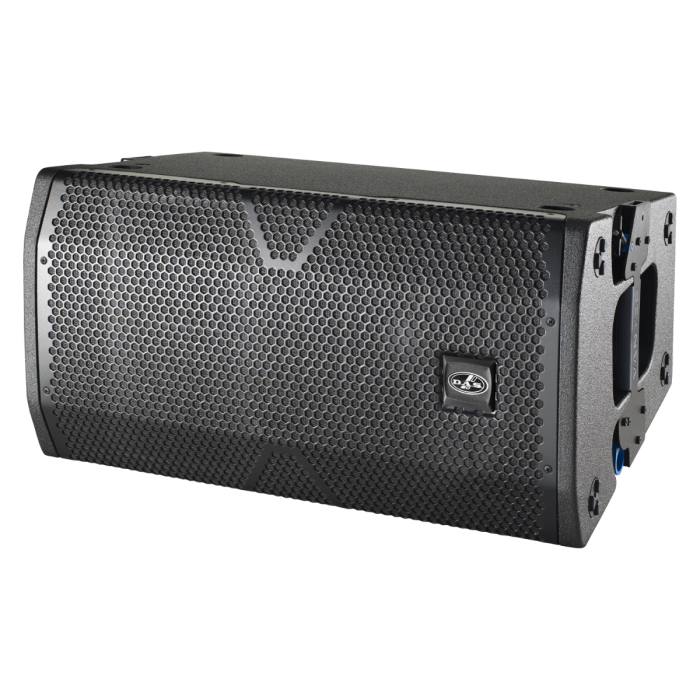

D.A.S. Audio VANTEC-20A 12" Powered 1500W 2-Way Curved Source Line Array

Vantec 20A

Designed for use in arrays of up to 5 units, the VANTEC-20A is ideal for applications where the power and long-throw characteristics of large line arrays are not needed. Fast and simple deployment is guaranteed thanks to the exclusive DAS Click-Lock™ rigging hardware which allows the system to be securely flown from or stacked on the VANTEC-118A . Individual units can be mounted on tripods with precise aiming possible thanks to the variable angle pole mount which allows for 13.5º up or down tilt.

The DAScontrolTM interface allows users to easily configure the VANTEC-20A i systems for use individually or in combination with other units. Selectable high pass filter presets facilitate alignment with the VANTEC-18A and VANTEC-118A  active bass systems without external processing. Throw compensation settings and array size selection can all be handled simply via the DAScontrolTM interface. When the VANTEC-20A is used individually, the DASlink™APP can be used to stream music in high definition stereo and remotely control the systems functions.

The enclosure is manufactured using Baltic birch plywood and finished with the DAS ISO-flex coating. Power is supplied by a cutting-edge 1500 Wpeak Class D amplifier in a biamplified configuration driving a single DAS 12F4C loudspeaker and twin M-60 compression drivers.

Features

• Powered

• 500 W (LF)+250 W (HF)

• 12″ Speakers

• 2 way full-range

• Curved Source

• 90×15 horn

• LCD control interface+wireless

• SPL Max: 135 dB

• Dispersion: 90º x 15º

• Weight: 28.5 kg (62.8 lb)
