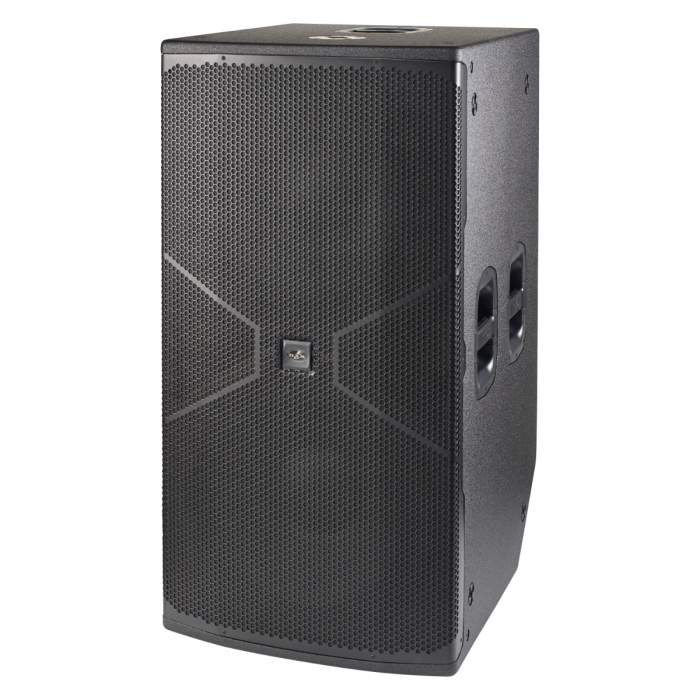

D.A.S. Audio VANTEC-218A 2x18" Powered 4000W Bass-Reflex Subwoofer
The VANTEC-218A is a powered bass subwoofer system designed to provide extended bass response for the VANTEC full range cabinets. A powerful 4000w peak amplifier drives dual DAS 18LX-long excursion bass loudspeakers incorporating 4″ voice coils and massive magnet structures provide high power handling and impressive output.
-
This Item:
$3,174.99
-
D.A.S. Audio VANTEC-20A 12" Powered 1500W 2-Way Curved Source Line Array
$3,111.99
VANTEC-218A
Powered by a Class D amplifier with switch mode power supply, digital signal processing and a 4000 Wpeak power rating. The system includes two balanced inputs (A-B) with stereo HPF filtered output connections for satellite systems. Defeating the HPF filter offers stereo “loop thru” connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system.
The compact cabinet is manufactured using birch plywood and is finished with a coating of the highly resistant ISO flex black paint for durability. Handles on the sides and the rear of the cabinet along with two rear located wheels make moving the box easier. The powder coated steel front grille protects the DAS components.
Features
-
Powered
-
4000w Peak Total Power
-
2×18″ Speakers
-
Ground-stackable long excursion bass-reflexsubwoofer
-
SPL Max: 140 dB
-
Dispersion: Omnidirectional
-
Weight: 69 kg (152 lb)
Specs
Performance |
|
| Frequency Range (-10 dB) | Loud: 35 Hz – 125 Hz – Deep: 30 Hz – 125 Hz |
| Maximum Peak SPL at 1 m | 140 dB |
Electronics and Connectors |
|
| Nominal Amplifier Power (continuous) | 2000 W |
| Nominal Amplifier Power (peak) | 4000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 3 V (+12 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 3.0 A/6.0 A |
Enclosure |
|
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Brand | D.A.S. Audio |
|---|---|
| Series | DAS Vantec Series |
| Cab Material | Birch Plywood |
| Speaker Size | 18" |
| Powered | Yes |
| Total Power | 2000W to 5000W |
| Max SPL at Peak | 140dB and over |
